Applicable standards:

  • STEEL BALL VALVES API 608/API 6D
  • STEEL BALL VALVES ISO 14313
  • FIRE SAFE,API 607
  • ANTI STATICS,API 608
  • STEEL VALVES,ASME B16.34
  • FACE TO FACE ASME B16.10
  • END FLANGES,ASME B16.5
  • BUTTWELDING ENDS ASME B16.25
  • INSPECTION AND TEST, API 598/ API 6D

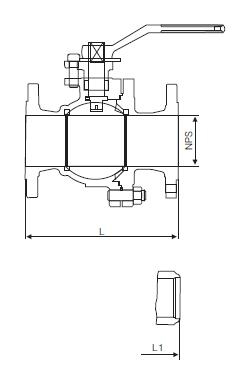

Floating Ball Valve

CL150

NPS 1/2 3/4 1 11/2 2 21/2 3 4 6 8 10 12
L(RF) 108 117 127 165 178 190 203 229 394 457 533 610
L1(BW) 140 152 165 190 216 241 283 305 457 521 559 635

CL300

NPS 1/ 2 3/4 1 11/2 2 21/2 3 4 6 8 10 12
L(RF) 140 152 165 190 216 241 283 305 403 502 568 648
L1(BW) 140 152 165 190 216 241 283 305 457 521 559 635

CL600

NPS 1 / 2 3/4 1 11/2 2 21/2 3 4 6
L(RF) 165 190 216 241 292 330 356 432 559
L1(BW) - - - - 295 333 359 435 562
