Applicable standards:

  • DESIGN & MANUFACTURE CONFORM WITH：API 6D/ISO 14313、ASME B16.34
  • CONNECTION DIMENSION CONFORMS WTIH：ASME B16.5、DN EN 1092
  • FIRE RESISTANCE DESIGN CONFORMS WITH：API 607/ISO 10497
  • INSPECTION & TEST CONFORMS WITH：API 6D、ISO 5208、API 598
  • MATERIAL CONFORMS WITH：ISO 15156

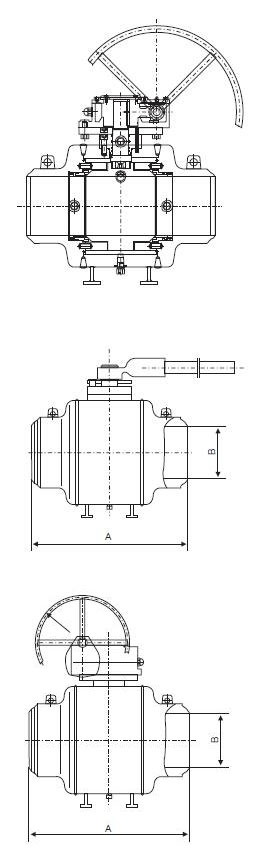

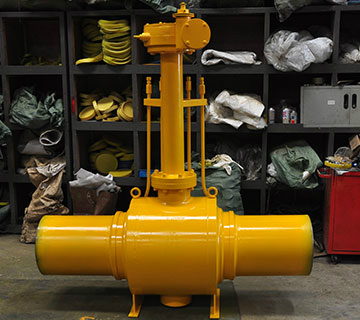

Fully Welded Ball Valves

CL150

NPS 2 3 4 6 8 10 12 14 16 18 20 24 28 30
A 216 283 305 457 521 559 635 762 838 914 991 1143 1346 1397
B 51 76 100 150 201 252 303 334 385 436 487 589 684 735

CL300

NPS 2 3 4 6 8 10 12 14 16 18 20 24 28 30
A 216 283 305 457 521 559 635 762 838 914 991 1143 1346 1397
B 51 76 100 150 201 252 303 334 385 436 487 589 684 735

CL600

NPS 2 3 4 6 8 10 12 14 16 18 20 24 28 30
A 292 356 432 559 660 787 838 889 991 1092 1194 1397 1549 1651
B 51 76 100 150 201 252 303 334 385 436 487 589 684 735

CL900

NPS 2 3 4 6 8 10 12 14 16 18 20 24
A 368 381 457 610 737 838 965 1029 1130 1219 1321 1549
B 49 74 100 150 201 252 303 322 373 423 471 589

CL1500

NPS 2 3 4 6 8 10 12 14
A 368 470 546 705 832 991

1130

1257

B 49 74 100 144 192 239 287 315
